Kiosk Station Management

The Station Management Tool allows users to create, search for, and view up to 1000 stations associated with an Agent.

Creating a Station

You can create a new Kiosk station by clicking the Create button at the top right of the Station Management screen. This will open the Create Station page, which requires you to fill in some details for the station account.

Field	Description
Agent Details	If you are an Agent level user, you won't need to select anything here. However, if you are a Master Agent or Head Office level user, you may need to select your downlines, depending on your permissions.
Station Info	This allows users to create a single station or multiple stations. After filling in all the required fields, the user can click on the Create button at the bottom. If a station is created successfully, the stations list will display with the newly created station being on top of the list. Single Station - Enter a station name and a password. You can click the Generate button next to the password field to have the system automatically populate the field. Multiple Stations - To create multiple stations at once, click the Create multiple stations checkbox. The user will be prompted to enter a station prefix (4-14 alphanumeric characters) and password. The station name will be system generated based on the prefix. The user can also click the Generate button to generate a password. The user must enter the number of stations to be created, with a maximum of 20.

Field

Description

Agent Details

If you are an Agent level user, you won't need to select anything here. However, if you are a Master Agent or Head Office level user, you may need to select your downlines, depending on your permissions.

Station Info

This allows users to create a single station or multiple stations. After filling in all the required fields, the user can click on the Create button at the bottom. If a station is created successfully, the stations list will display with the newly created station being on top of the list.

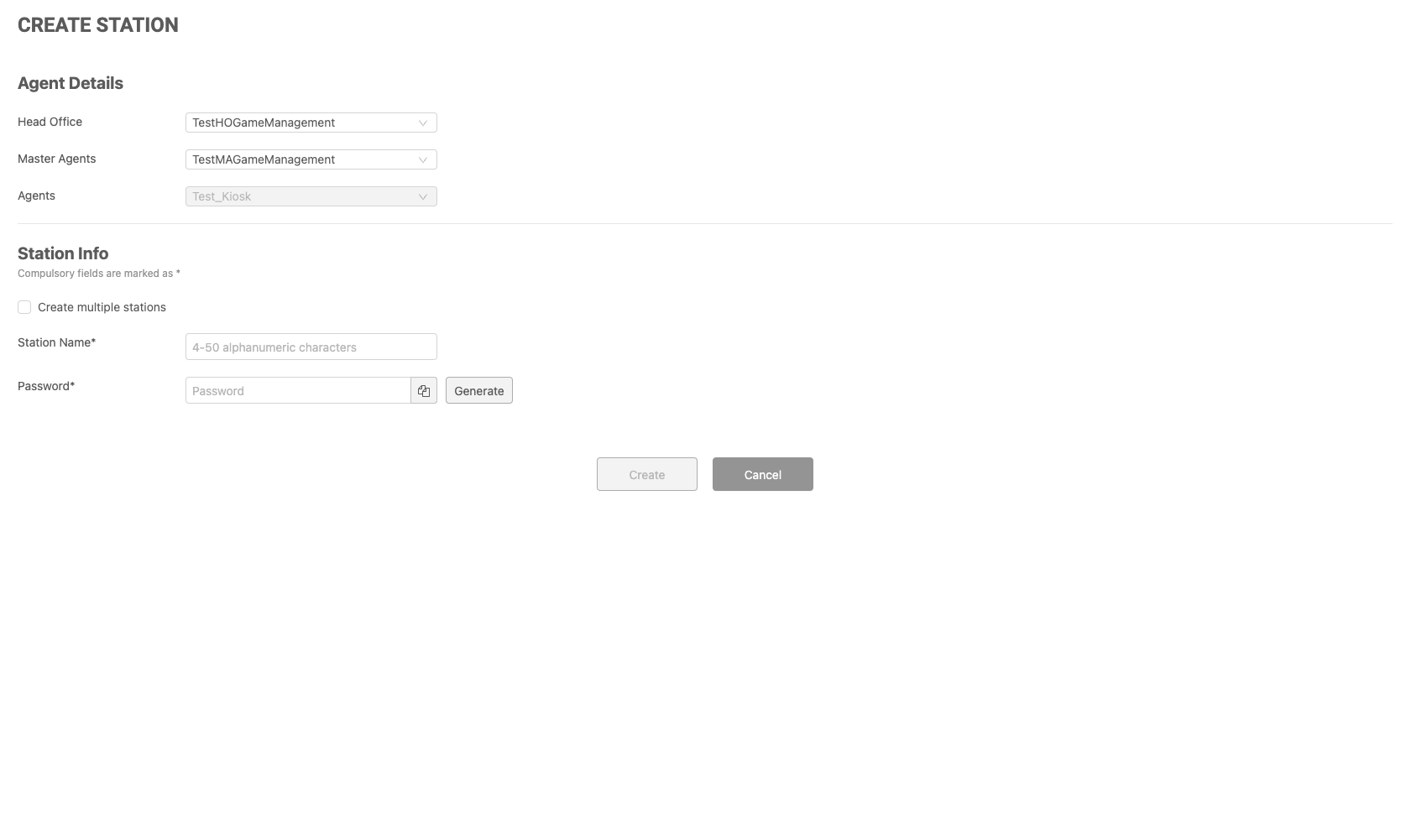

Single Station - Enter a station name and a password. You can click the Generate button next to the password field to have the system automatically populate the field.

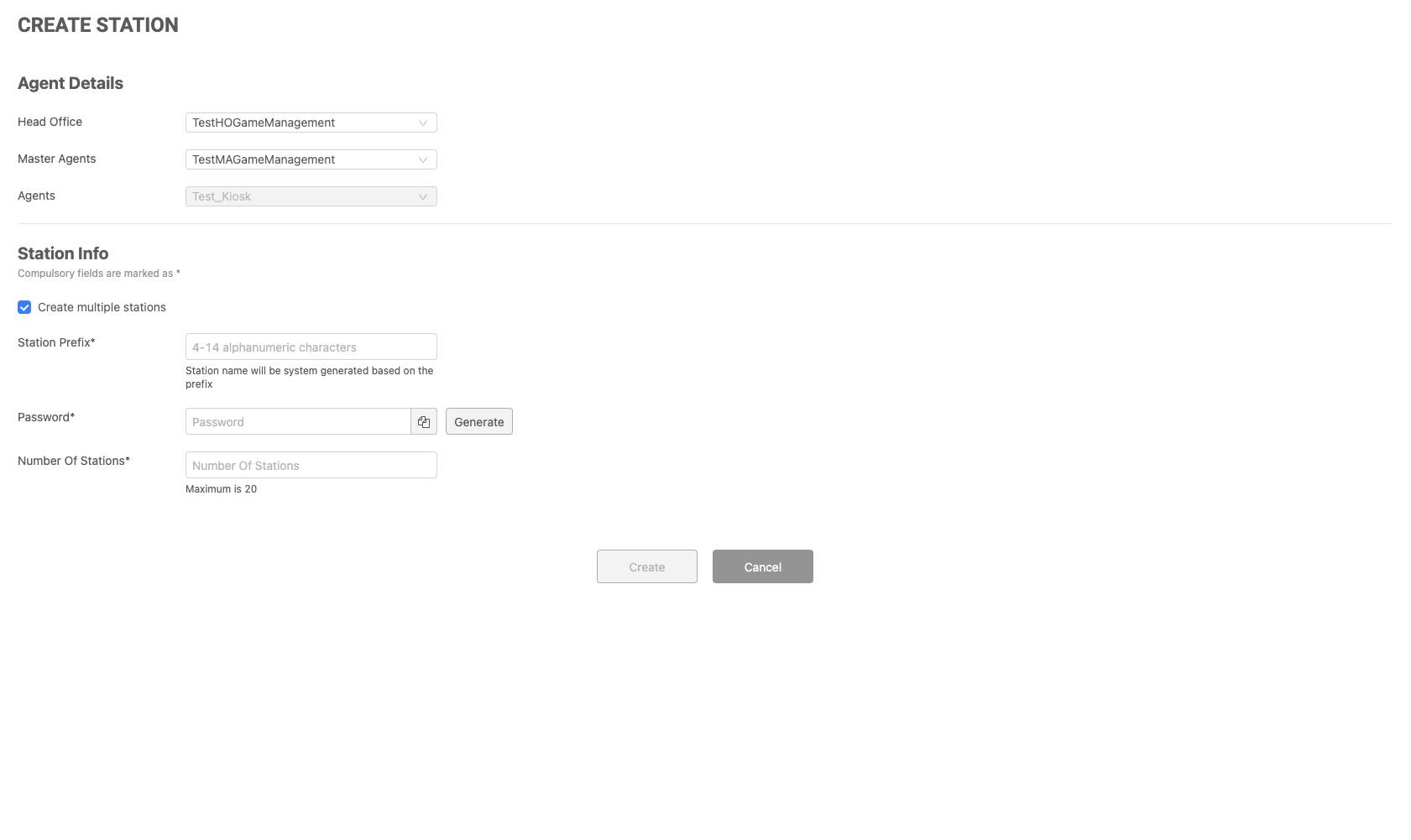

Multiple Stations - To create multiple stations at once, click the Create multiple stations checkbox. The user will be prompted to enter a station prefix (4-14 alphanumeric characters) and password. The station name will be system generated based on the prefix. The user can also click the Generate button to generate a password. The user must enter the number of stations to be created, with a maximum of 20.

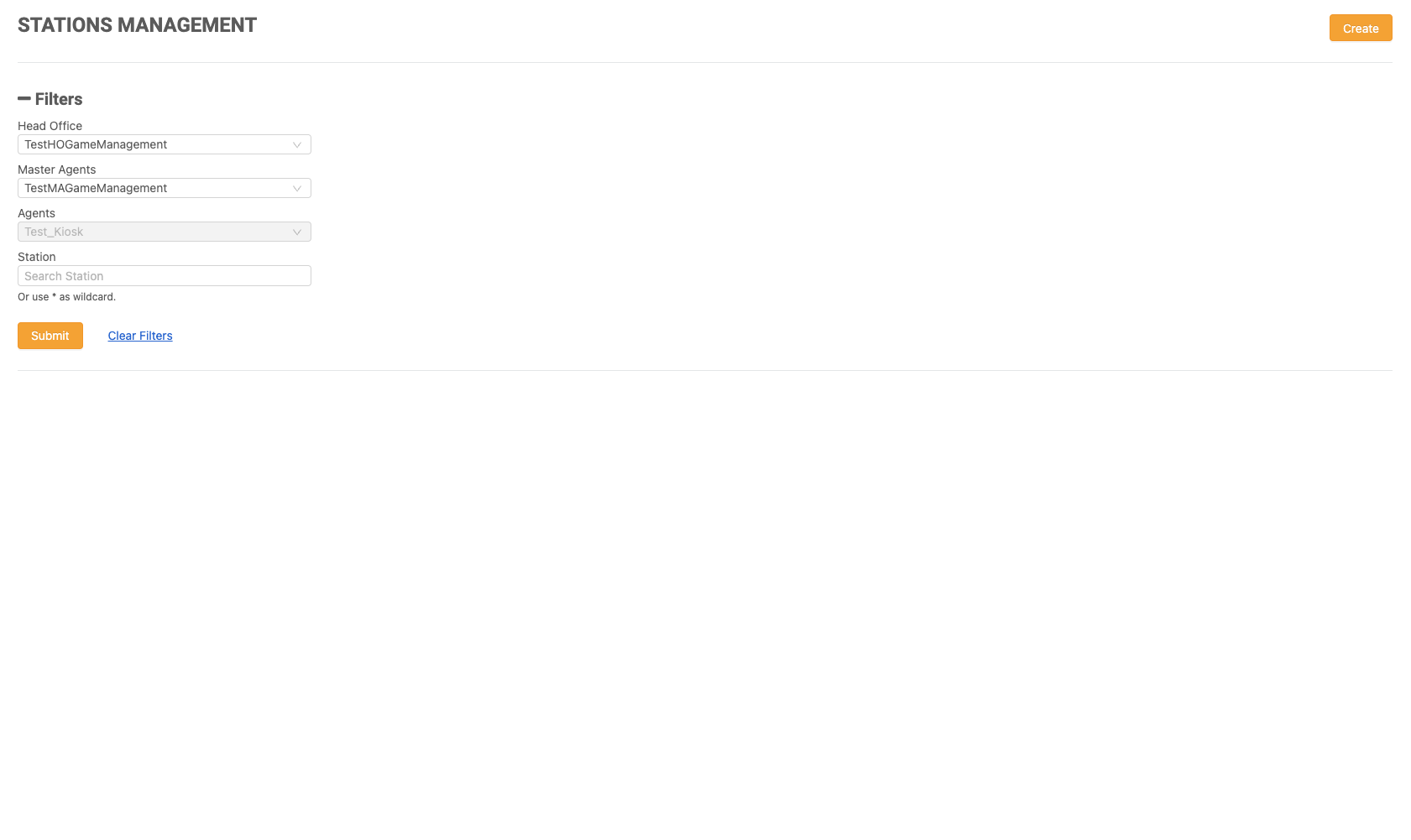

Filtering the Station Management Table

Use the filters to refine your search criteria. Click the Submit button to view the results, or click Clear Filters to reset and start over.

Filter	Description
Entity Filters	Users can apply filters to view the data relevant to the entity. Only one value can be chosen from the drop-down menu. For menus with only one option, the option will be automatically displayed and selected.
Station	The table can be filtered for a single station’s data by searching for it using the text box. This is an optional field. A station name can be entered, or an asterisk () can be used as a search wildcard. If a user clicks Submit* without entering a station name, the system will return a list of all the stations under the selected Agent.

Filter

Description

Entity Filters

Users can apply filters to view the data relevant to the entity. Only one value can be chosen from the drop-down menu. For menus with only one option, the option will be automatically displayed and selected.

Station

The table can be filtered for a single station’s data by searching for it using the text box.

This is an optional field.

A station name can be entered, or an asterisk (*) can be used as a search wildcard. If a user clicks Submit without entering a station name, the system will return a list of all the stations under the selected Agent.

Functionality of the Kiosk Stations Management Table

To adjust the filters for resubmission, click Filter (this may be displayed as an icon or as a link labeled +Filter).

Clicking on the Export button will provide the user with an Excel .CSV file of the table summary.

Upon clicking Submit, a list of stations will be displayed in order of Latest Creation Date by default. Users may click the header of each column to sort the list in a different order, and can also drag and drop the column to a desired position in the table. Additionally, a search box is available to search by station name. Upon logging in, the table will be sorted in the same order as the last log in.

Column Name	Description
Station Name	The name of the station.
Created On	The station’s date of creation.
Current Balance	The station’s current amount of money.
Last Deposit Date	The date of the last deposit made to the station. This field may be empty if no deposit has been made.
Status	By clicking on the lock icon, users can lock a specific station. A confirmation message will appear to confirm the action. If the user does not have permission to lock/unlock, clicking on the lock icon will open the deposit/withdraw pop-up. Locking a station will restrict its game play and prevent deposit/withdraw transactions.
Actions (Each icon is clickable)	The dollar icon opens the Cashier modal, allowing users to make deposits and withdrawals for a station. The key icon allows users to reset a station’s password. The info icon opens up the Station Info page. The graph icon opens up the Station Dashboard. The trash can icon allows users to delete a station. The user can hover over the icon to view the tooltip. See the sections below for a detailed explanation of each action.

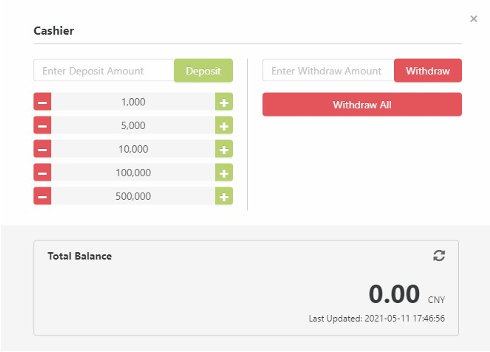

By clicking either on the row or the dollar icon, users can open the Cashier modal, enabling them to make deposits and withdrawals for a station.

Deposit/Withdraw - In the Cashier modal, users can make deposits and withdrawals for a station. They can enter the desired amount for deposit or withdrawal either by using the keyboard or by clicking on the + and - signs.
Withdraw All - Users can use the Withdraw All function to withdraw the entire remaining balance from a station's account.
Station Balance - Displays the total balance of the station account. The total balance of the station’s account will refresh automatically when the deposit or withdraw button is clicked.

Reset Password for a Station

Clicking the key icon under Actions in the Station List will prompt a reset password message. Users can choose to enter their own password or click Generate to have a secure password automatically created for them. The copy icon can be used to copy and paste the generated password elsewhere for safekeeping. It is important to note that this is the only time that the password will be displayed in plain text; once it is reset, it will not be displayed again, so users must remember or store their passwords securely.

Station Info

By clicking on the Info icon, the Station Info page opens. Any changes made to this page are automatically saved. In this page, the user can update the following fields:

Allow Progressive - Determines whether a station has permission to play progressive slot games by selecting the Yes/No radio buttons.
Bet Profiles - Users can utilize this section to choose a specific bet profile. The bet profile values are set according to the bet profile logic. Refer to Tools > Users Management > Betting Profiles Management for a detailed display regarding the bet profile logic.

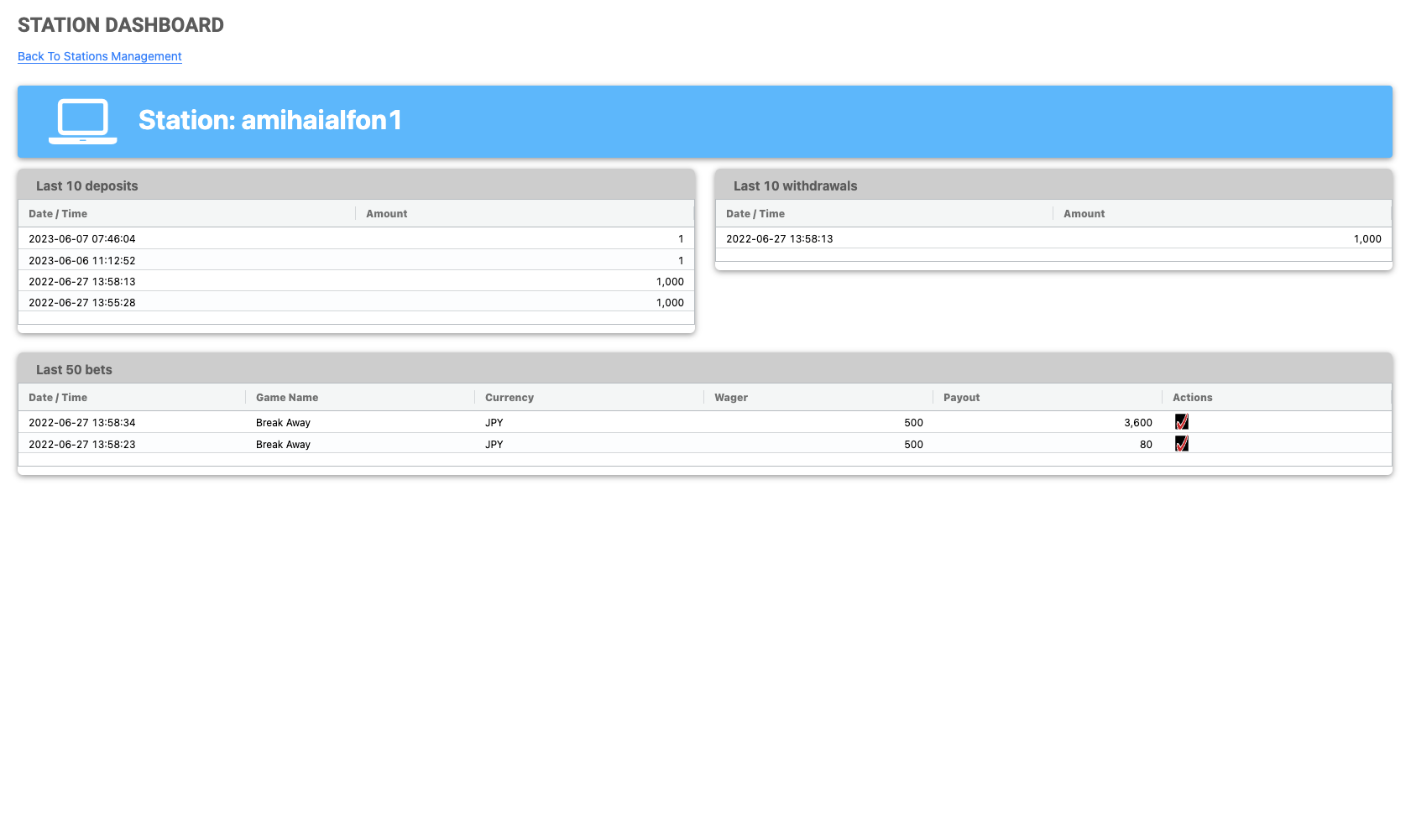

Station Dashboard

The Station Dashboard offers users a quick view of a particular station account's information without needing to access the reports. This information includes the last 10 deposits, last 10 withdrawals, and the last 50 bets made by the station, with a link to Playcheck for each bet.

Delete

The trash can button under Actions can be clicked to delete a station account, provided that the account balance is zero.
